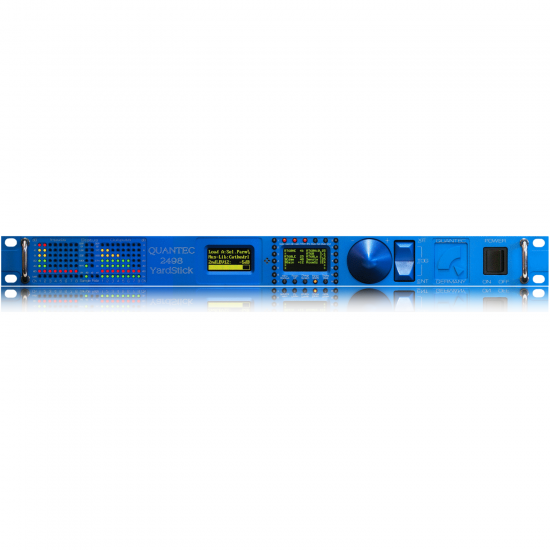

Yardstick 2498

Yardstick 2498
Yardstick 2498
2498 Features:

both high density and low coloration at the same time
stunning sonic transparency
subsonic option ("DC transparency") for thunder and earthquake effects
2 in / 8 out mode (standard QRS plug-in @96kHz)
8 in / 8 out mode (standard QRS plug-in @48kHz)
dual/quadruple 2 in / 2 out mode (special QRS2/4 plug-in @96/48kHz, TBA)
up to 8 unique phase-insensitive input channels
up to 4 stereo input pairs with adjustable staggered depth offsets
up to 8 separate output channels
up to 4 stereo output pairs with 50% correlation (adjustable)
up to 16 front panel bargraph level meters
24bit / 96kHz for all I/O signal paths (±12.5% Varispeed)
floating-point DSPs for unlimited internal dynamic range
low latency <<1ms
Mute, Bypass, and Solo functions with individual LED-illuminated front panel buttons
embedded click test generator
14 plus/minus toggles for direct front panel access to parameters
a total of 27 front panel operating elements
up to 63 plug-in banks for software
web browser-based remote control over Ethernet (includes web apps for iPad + iPhone)
MIDI (remote control, total recall, dynamic automation)
USB (preliminary)
calendar clock with automatic timestamping of user presets (free running or as an NTP client)
audio I/O via DSUB25 receptacle (AES59, Tascam, and Yamaha pinouts)
cable snake (DSUB25 cable plug to 8 XLR - 4in/4out) shipped with the unit
tiny cool-running unit, no fan, 19" 1PU, just 36mm (<1½") deep
internal power supply (100-240V, 50-60Hz), power consumption <20VA
Design team headed by the designer of the legendary 1982 QUANTEC QRS.
  • Stock: In Stock
  • Model: 2498
$7,900.00
Ex Tax: $7,900.00
