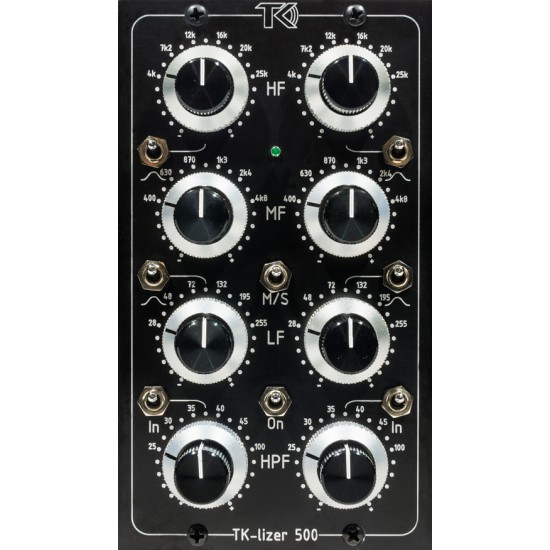

TK-lizer 500

The TK-lizer 500 features all the power of the TK Audio’s flagship TK-lizer, including the M/S functionality that has made it such a staple in studios all over the world.
The three bands have a cut/boost range of +/-8dB in 41 steps. The low and high bands can be switched between peak or shelving mode. A high pass filter with a 12dB slope is also provided, and each channel has it’s own level control with a range from infinity to +6dB.
Using the built in M/S function, you can adjust the middle and side signals separately before it is decoded back to a normal L/R signal. In M/S mode you can also adjust the stereo width using the level controls.


Power requirement: +190mA / -80mA (extended over two slots)
Frequency response: 20Hz to 50kHz +/-0.2dB
THD @ +4dBu less than 0.0006%
THD+N @ +26dBu is less than 0.001%
Signal to noise ratio: 95dB
Cross talk: -89dB
Input impedance: 24kohm
Output impedance: 50ohm
Max input level: +26dBu
Max output level: +27dBu
Q~0.5

Features:
Low band:
Frequency: 28Hz, 48Hz, 72Hz, 132Hz, 195Hz, 255Hz
Boost/cut: +/-8dB
Peak or Shelf
Mid Band:
Frequency: 400Hz, 630Hz, 870Hz, 1.3kHz, 2.4kHz, 4.8kHz
Boost/cut: +/-8dB
High Band:
Frequency: 4kHz, 7.2kHz, 12kHz, 16kHz, 20kHz, 25kHz
Boost/cut: +/-8dB
Peak or Shelf

High Pass Filter
Frequency: 25Hz, 30Hz, 35Hz, 40Hz, 45Hz, 100Hz, 12dB / octave
In/Out

Level: Infinity to +6dB (Unity gain at 12’o lock)
EQ in/out. (LED red for out, green for in)
M/S in/out



  • Stock: In Stock
  • Model: TK-lizer 500
$1,299.00
Ex Tax: $1,299.00
Tags: TK-lizer 500
