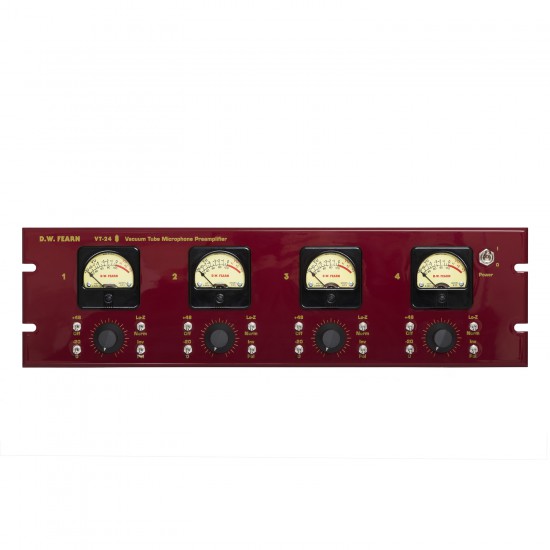

VT-24

VT-24
In Stock
VT-24
Like most of our products, the VT-24 came about because it was something I needed for my own recording projects. I wanted to record every microphone with VT-1/VT-2 mic preamps, but I was running out of rack space in my small control room. A four-channel version of the VT-2 would double my preamp capacity in the same space.

I did not want to compromise on the sound nor on the features of the VT-2. The VT-24 uses the identical circuit and custom Jensen input and output transformers as all our mic preamps. It has four true VU meters, but they are smaller than on a VT-1/VT-2. Specs are the same as a VT-2, and, most importantly, the sound is exactly the same.

The VT-24 has eight tubes, but it runs cool enough that no fan is required, so you can have it next to live mics without a problem.

One thing that we did have to eliminate in the VT-24 is the meter switch. But the 48V phantom power, 20dB pad, and special input selection for Low-Z microphones are just like on a VT-1/VT-2. The power switch is on the front panel.



SPECIFICATIONS

· Input 150 ohms
· Input Load Impedance 1.5k ohms
· Minimum Input Level -65 dBm nominal
· Maximum Input Level @ 20 cps -30 dBm without pad, -5 dBm with 20 dB pad
· Gain 53 dB
· Frequency Response +/-0.25 dB 20 cps to 20 kc; -3 dB @ 0.5 cps and 55 kc
· THD+Noise less than 0.25% 20 cps to 20 kc
· Intermodulation Distortion SMPTE less than 0.02%
· Signal to Noise Ratio 74 dB minimum
· Equivalent Input Noise -124 dBm maximum
· Output low-Z, transformer-balanced
· Maximum Output Level +22 dBm, 20k ohm load
· Power Requirements 100, 120, or 220 VAC, 50/60 Hz
· Dimensions 19" (48.26cm) W, 5.25" (13.34cm) H, 14" (35.56cm) D
· Weight 20 lbs (9kg)
  • Stock: In Stock
  • Model: VT24
$9,150.00
Ex Tax: $9,150.00
Tags: VT-24
